Description

Premium Heavy-Duty Square Plastic Pallet (1200x1200mm)

Product Overview

Optimize your industrial warehousing and bulk storage footprint with our Premium Large Square Plastic Pallet. Measuring a perfectly symmetrical 1200×1200mm, this heavy-duty pallet is engineered to provide maximum stability for large-volume loads and block-stacking setups. Constructed with an open ventilated grid deck and a rigid runner-style base layout, it ensures uniform weight distribution and seamless integration with both manual material handling equipment and automated systems.

Key Features & Benefits：

Heavy-Duty Square Plastic Pallet

Symmetrical Square Geometry: The 1200x1200mm dimensions offer equal load stability from all sides, maximizing storage footprints and shipping efficiency.
High-Flow Ventilated Grid Deck: Designed with a prominent crisscross grid pattern to facilitate excellent air circulation, eliminate moisture pooling, and allow easy pressure washing.
Heavy-Duty Structural Base: Formed with wide, rigid bottom blocks and skid channels to handle heavy floor stacking and intensive industrial environments.
Optimized 4-Way Entry: Engineered with precise fork clearance spaces on all four sides, streamlining operations for standard forklifts and pallet jacks alike.
Industrial Durability: Completely free of splinters, nails, or moisture-absorption issues common to traditional wood, providing a safe, reusable, and eco-friendly lifecycle.

Technical Specifications：

Heavy-Duty Square Plastic Pallet

Parameter	Specification
Dimensions (LxWxH)	1200 mm × 1200 mm × Height Profile
Deck Layout	Open Grid / Ventilated Mesh
Base Configuration	Multi-block Runner Base
Entry Profile	4-Way Entry
Color	Industrial Blue

Meticulous Structural & Entry Dimensions：

Heavy-Duty Square Plastic Pallet

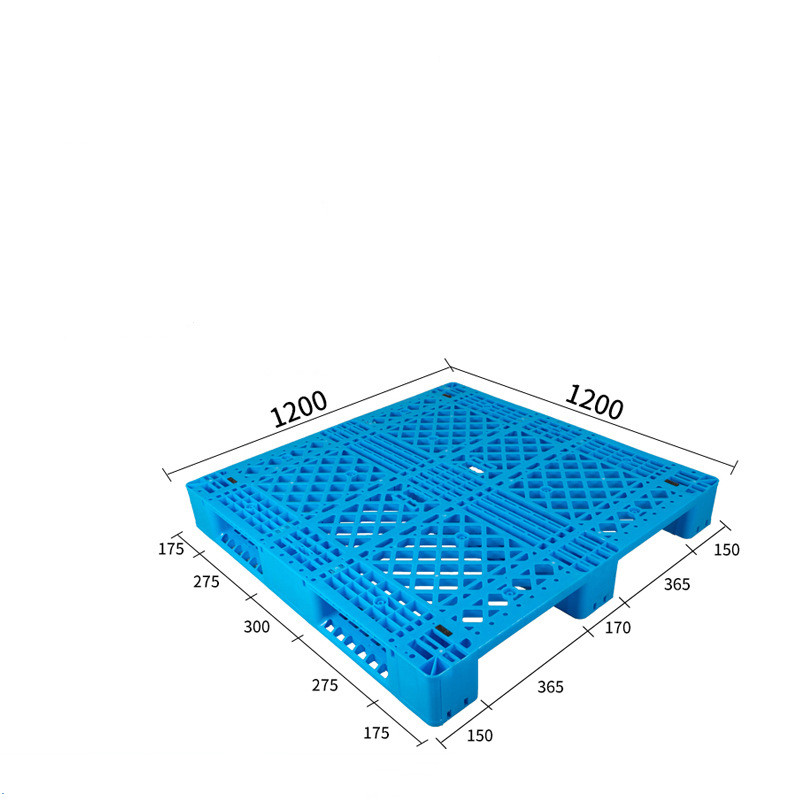

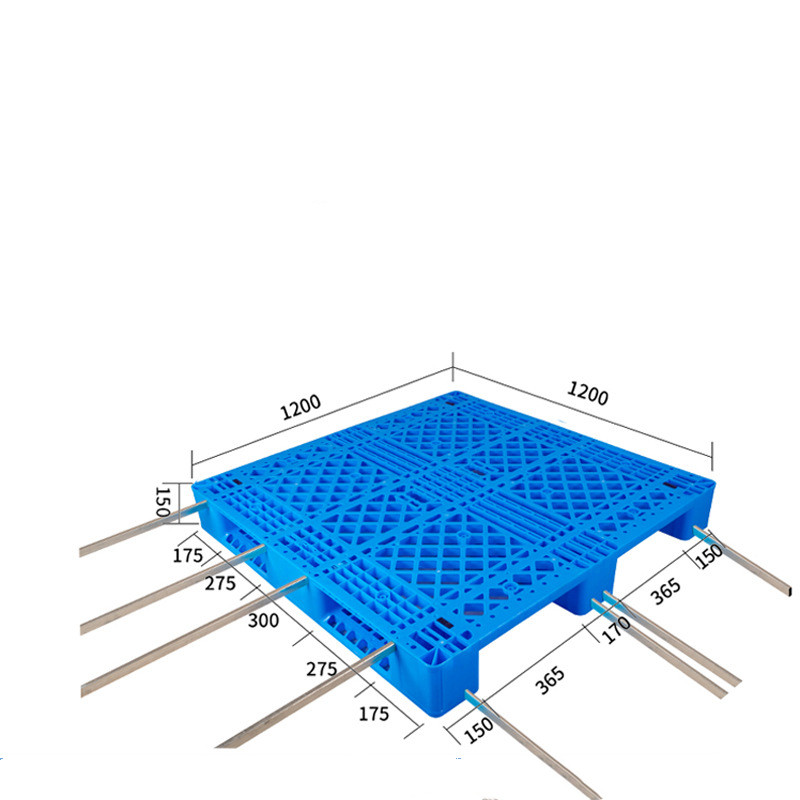

As detailed in the technical drawing of “plastic pallet (16).jpg”, the structural gaps are carefully proportioned for equipment safety:

First Side Profile (1200mm): Features wide fork entry windows measuring 275mm each, separated by a 300mm central runner block, with 175mm outer corner pillars.
Second Side Profile (1200mm): Configured with extra-wide entry clearance gaps measuring 365mm each, divided by a 170mm central pillar, with 150mm outer corners.

Ideal Applications：

Heavy-Duty Square Plastic Pallet

This large-scale square plastic pallet is perfectly suited for:

Bulk Stacking & Heavy Manufacturing: Symmetrical layout prevents leaning or sliding when stacking packed sacks, boxes, or barrels.
Automated Logistics & Conveyors: Rigid block footprints ensure precise conveyor sensor tracking and smooth travel.
Chemical & Raw Material Warehousing: Impervious to liquid spills, weak acids, alkalis, and pest contamination.
Closed-Loop Logistics Networks: Exceptionally durable design engineered to survive thousands of reuse cycles, significantly lowering your long-term cost-per-trip.
